Solution 3
Standardized handoff process
Medical staffs hand off patients information in a more standardized, intuitive method through PIVOT app.
View user groups/flows
Solution 2
Access patient information quickly and easily
Medical staffs scan patients pivot using PIVOT App to access their information
View final Prototype of PIVOT App
Project Overview
Solution 1
Versatile wearable medical chip
Patients wear PIVOT in any form they prefer, necklace, bracelet, etc, and input medical information.
View renderings of PIVOT Wearable
RESEARCH
RESEARCH
RESEARCH
The Problem
The Problem
The Problem
When considering a medical emergency, two main issues arise: emotional challenges and procedural difficulties. Patients and their guardians feel anxious and stressed due to the procedural challenges faced in the emergency department.
When considering a medical emergency, two main issues arise: emotional challenges and procedural difficulties. Patients and their guardians feel anxious and stressed due to the procedural challenges faced in the emergency department.
When considering a medical emergency, two main issues arise: emotional challenges and procedural difficulties. Patients and their guardians feel anxious and stressed due to the procedural challenges faced in the emergency department.
stroke patient identified
On the way to the nearest Emergency room
EMT verbally hands off patient’s information to the nurse
Nurse verbally hands off patient’s information to the doctor
Doctors communicate verbally to diagnose and treat patient
Nurses asks patient the same question repeatedly
23%
of medical errors in hospitals are due to communication failures during patient handoff
63%
of nurses report at least one incident of communication failure during patient handoff
59%
of internal medicine and general surgery physicians had witnessed harm to one or more patients due to poor patient handover
23%
of medical errors in hospitals are due to communication failures during patient handoff
63%
of nurses report at least one incident of communication failure during patient handoff
59%
of internal medicine and general surgery physicians had witnessed harm to one or more patients due to poor patient handover
stroke patient identified
On the way to the nearest Emergency room
EMT verbally hands off patient’s information to the nurse
Nurse verbally hands off patient’s information to the doctor
Doctors communicate verbally to diagnose and treat patient
Nurses asks patient the same question repeatedly
How do patients and their guardians feel?
How do patients and their guardians feel?
How do patients and their guardians feel?
I interviewed 5 people who have experience with their loved ones being at an emergency room or have experience being at an emergency room themselves
I interviewed 5 people who have experience with their loved ones being at an emergency room or have experience being at an emergency room themselves
I interviewed 5 people who have experience with their loved ones being at an emergency room or have experience being at an emergency room themselves
Frustrated
Frustrated
Frustrated
Stressed
Stressed
Stressed
Anxious
Anxious
Anxious
21 years old, College student
21 years old, College student
"When I visited the ER, the nurses and staffs asked me the same question over and over again, which I felt like made the process delayed"
"When I visited the ER, the nurses and staffs asked me the same question over and over again, which I felt like made the process delayed"
"When I visited the ER, the nurses and staffs asked me the same question over and over again, which I felt like made the process delayed"
50 years old, has an elderly parent
50 years old, has an elderly parent
“After my dad visited the emergency room once, I am always afraid that he will run into another medical emergency when he’s alone”
“After my dad visited the emergency room once, I am always afraid that he will run into another medical emergency when he’s alone”
“After my dad visited the emergency room once, I am always afraid that he will run into another medical emergency when he’s alone”
22 years old, College student
22 years old, College student
“I’m mostly concerned that the treatment will be delayed due to the lack of medical information about my grandpa”
“I’m mostly concerned that the treatment will be delayed due to the lack of medical information about my grandpa”
“I’m mostly concerned that the treatment will be delayed due to the lack of medical information about my grandpa”
RESEARCH
RESEARCH
RESEARCH
What is being done?
What is being done?
What is being done?
Tools and products that are currently being used
Tools and products that are currently being used
Tools and products that are currently being used
Medical bracelet, color coded hospital bracelets, emergency call devices, and the I-Pass tool are the 4 products and systems that are being used to improve procedural and emotional challenges in an emergency situation. I researched reviews of each product, categorized data points into user groups and analyzed what each product solves.
Medical bracelet, color coded hospital bracelets, emergency call devices, and the I-Pass tool are the 4 products and systems that are being used to improve procedural and emotional challenges in an emergency situation. I researched reviews of each product, categorized data points into user groups and analyzed what each product solves.
Medical bracelet, color coded hospital bracelets, emergency call devices, and the I-Pass tool are the 4 products and systems that are being used to improve procedural and emotional challenges in an emergency situation. I researched reviews of each product, categorized data points into user groups and analyzed what each product solves.
1
Research reviews of each product
2
Categorizing data points into user groups
3
Product/procedure and what it solves
1
Research reviews of each product
2
Categorizing data points into user groups
3
Product/procedure and what it solves
1
Research reviews of each product
2
Categorizing data points into user groups
3
Product/procedure and what it solves
DEFINE
DEFINE
DEFINE
What should be done?
What should be done?
What should be done?
1
1
1
Communicate directly with the ED provider responsible for the patient's care
Communicate directly with the ED provider responsible for the patient's care
Communicate directly with the ED provider responsible for the patient's care
2
2
2
Increase interdisciplinary feedback, transparency between EMS staffs and hospital staffs
Increase interdisciplinary feedback, transparency between EMS staffs and hospital staffs
Increase interdisciplinary feedback, transparency between EMS staffs and hospital staffs
3
3
3
Standardize aspects of the handoff
Standardize aspects of the handoff
Standardize aspects of the handoff
4
4
4
Harness technology to close gaps in information exchange
Harness technology to close gaps in information exchange
Harness technology to close gaps in information exchange
(Meisel et al., 2015)
(Meisel et al., 2015)
(Meisel et al., 2015)
Parallel to “Pivoted”
Parallel to “Pivoted”
Parallel to “Pivoted”
Currently, during a patient handoff, patient information travels in a horizontal, parallel manner which increases chances of miscommunication, process delay, misinformation and repetitiveness. For a better handoff for both patients/guardians and medical staffs, patients’ information should be pivoted.
Currently, during a patient handoff, patient information travels in a horizontal, parallel manner which increases chances of miscommunication, process delay, misinformation and repetitiveness. For a better handoff for both patients/guardians and medical staffs, patients’ information should be pivoted.
Currently, during a patient handoff, patient information travels in a horizontal, parallel manner which increases chances of miscommunication, process delay, misinformation and repetitiveness. For a better handoff for both patients/guardians and medical staffs, patients’ information should be pivoted.
Current handoff
Current handoff
Current handoff
Standardized handoff
Standardized handoff
Standardized handoff
DEFINE
DEFINE
Problem to goal to features
Problem to goal to features
Problem to goal to features
PROBLEM
PROBLEM
PROBLEM
Guardians feel stressed and anxious about their patients
Guardians feel stressed and anxious about their patients
Guardians feel stressed and anxious about their patients
GOAL
GOAL
GOAL
Allow more freedom for patients without concerns for medical emergencies
Allow more freedom for patients without concerns for medical emergencies
Allow more freedom for patients without concerns for medical emergencies
FEATURE
FEATURE
FEATURE
Portable, accessible medical document that can easily be viewed by first responders
Portable, accessible medical document that can easily be viewed by first responders
Portable, accessible medical document that can easily be viewed by first responders
PROBLEM
PROBLEM
PROBLEM
Frustrations due to inefficient emergency treatment process
Frustrations due to inefficient emergency treatment process
Frustrations due to inefficient emergency treatment process
GOAL
GOAL
GOAL
Minimize possibilities for misinformation and miscommunication
Minimize possibilities for misinformation/ miscommunication
Minimize possibilities for misinformation/ miscommunication
FEATURE
FEATURE
FEATURE
Transparent handoff process across all medical staffs through a standardized app
Transparent handoff process across all medical staffs through a standardized app
Transparent handoff process across all medical staffs through a standardized app
PROBLEM
PROBLEM
PROBLEM
Communication failure during patient handoff
Communication failure during patient handoff
Communication failure during patient handoff
GOAL
GOAL
GOAL
Increased efficiency in medical emergency situations
Increased efficiency in medical emergency situations
Increased efficiency in medical emergency situations
FEATURE
FEATURE
FEATURE
Intuitive communication system across all medical staffs regarding patient information
Intuitive communication system across all medical staffs regarding patient information
Intuitive communication system across all medical staffs regarding patient information
DESIGN
DESIGN
DESIGN
Ideation
Ideation
Ideation

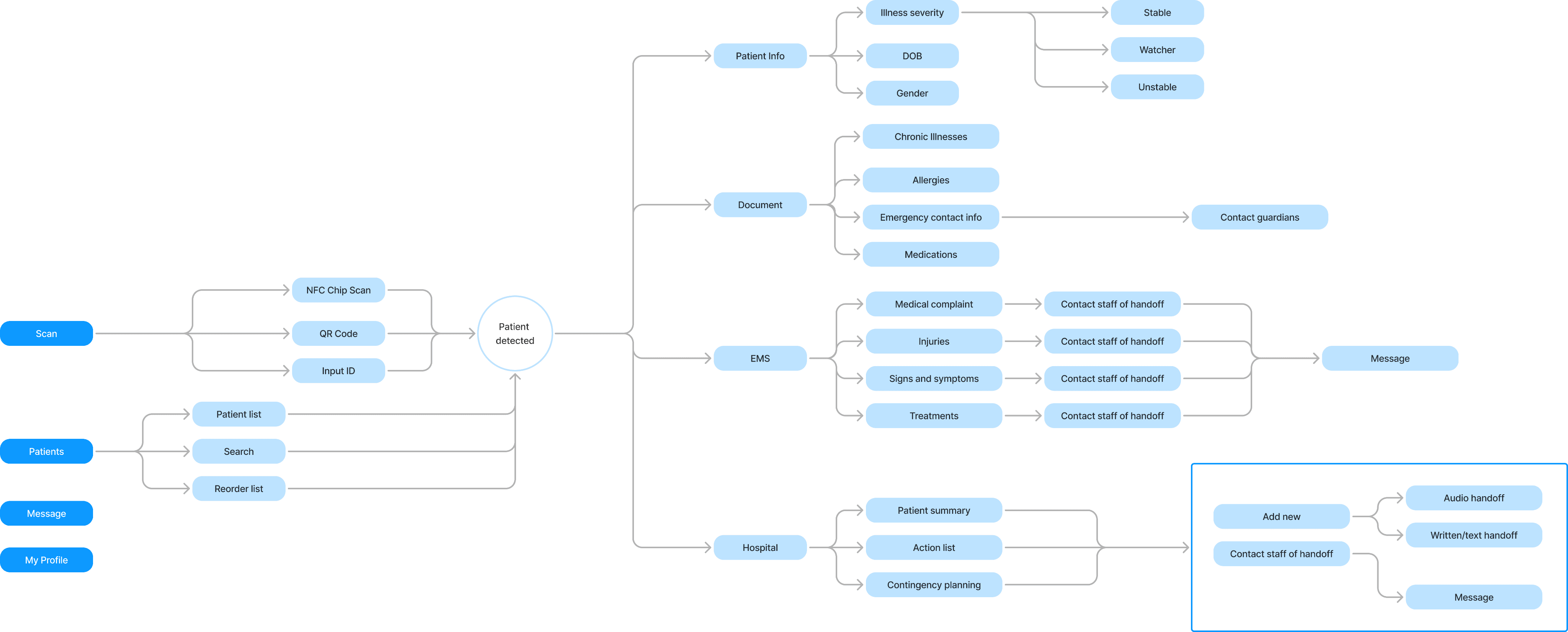

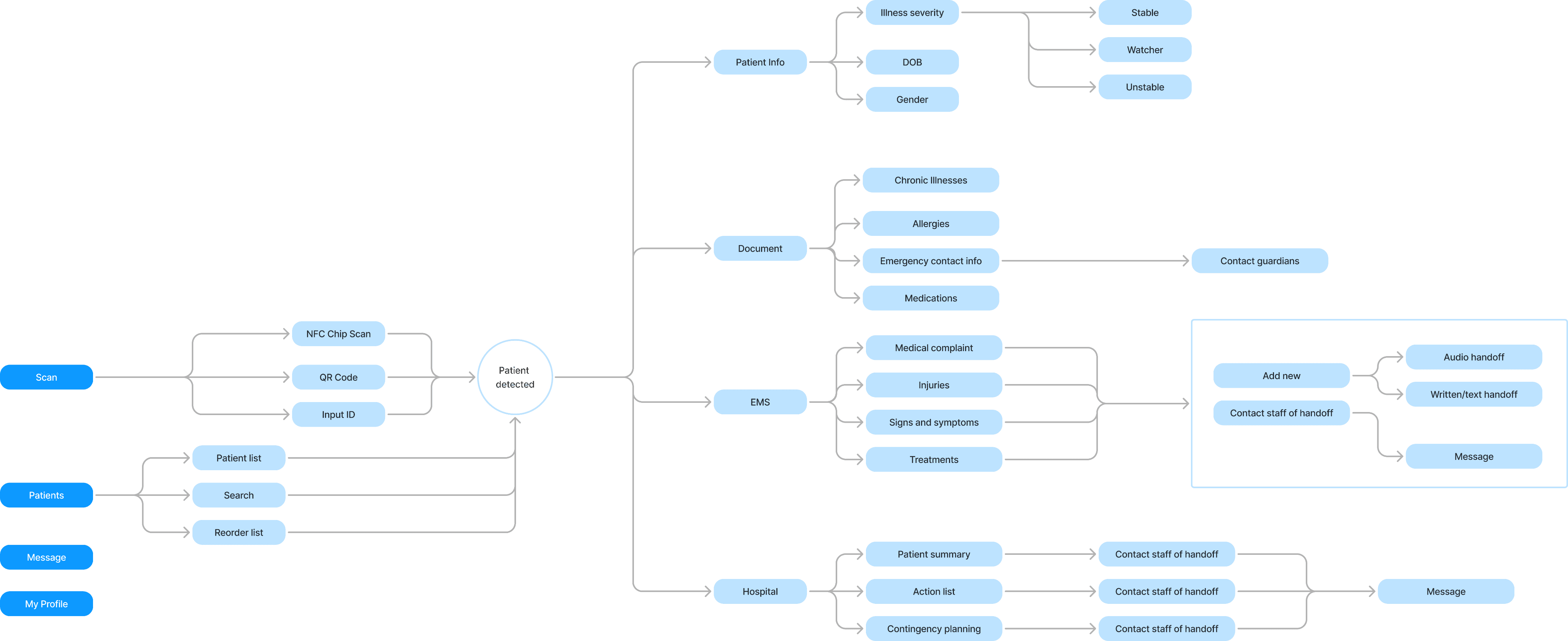

User groups + User flow
User groups + User flow
User groups + User flow
There are three distinct user groups and stakeholders for PIVOT. Click each user group to learn what actions each group employ to enhance their sense of security and optimize patient handoff using PIVOT.
There are three distinct user groups and stakeholders for PIVOT. Click each user group to learn what actions each group employ to enhance their sense of security and optimize patient handoff using PIVOT.
There are three distinct user groups and stakeholders for PIVOT. Each user group enhance their sense of security and optimize patient handoff using PIVOT.
Patients and guardians
Hospital Staffs
First responders (EMT)
Patients and guardians
Hospital Staffs
First responders (EMT)
Patients and guardians
Hospital Staffs
Hospital Staffs
First responders (EMT)
First responders (EMT)
DELIVER
DELIVER
DELIVER
PIVOT Products
PIVOT Products
PIVOT Products
PIVOT Wearables
PIVOT Wearables
PIVOT Wearables
Pivot block
Pivot block
Pivot block
Wristband
Wristband
Wristband
Keychain
Keychain
Keychain
PIVOT App
PIVOT App
PIVOT App
Staff version
Staff version
Pivot app
Pivot app
Pivot app
Guardian/Patient version
Guardian/Patient version
Pivot app
Pivot app
Pivot app
PIVOT Block
PIVOT Block
PIVOT Block
Dual access to patient information: NFC chip or QR code
Different colors of lights indicate basic medical alerts: Allergies, DNR, latex allergy, fall risk
Dual access to patient information: NFC chip or QR code
Different colors of lights indicate basic medical alerts: Allergies, DNR, latex allergy, fall risk
Dual access to patient information: NFC chip or QR code .Different colors of lights indicate basic medical alerts: Allergies, DNR, latex allergy, fall risk
Keychain
Keychain
Keychain
Wristband
Wristband
Wristband
DELIVER
DELIVER
DELIVER
PIVOT App
PIVOT App
PIVOT App
Prototype Video
Prototype Video
Scan PIVOT Wearable
Scan PIVOT Wearable
Scan PIVOT Wearable
Medical staffs access patients medical information by scanning their PIVOT wearable. This reduces repetitiveness and redundancy in medical emergency situations.
Medical staffs access patients medical information by scanning their PIVOT wearable. This reduces repetitiveness and redundancy in medical emergency situations.
Medical staffs access patients medical information by scanning their PIVOT wearable. This reduces repetitiveness and redundancy in medical emergency situations.

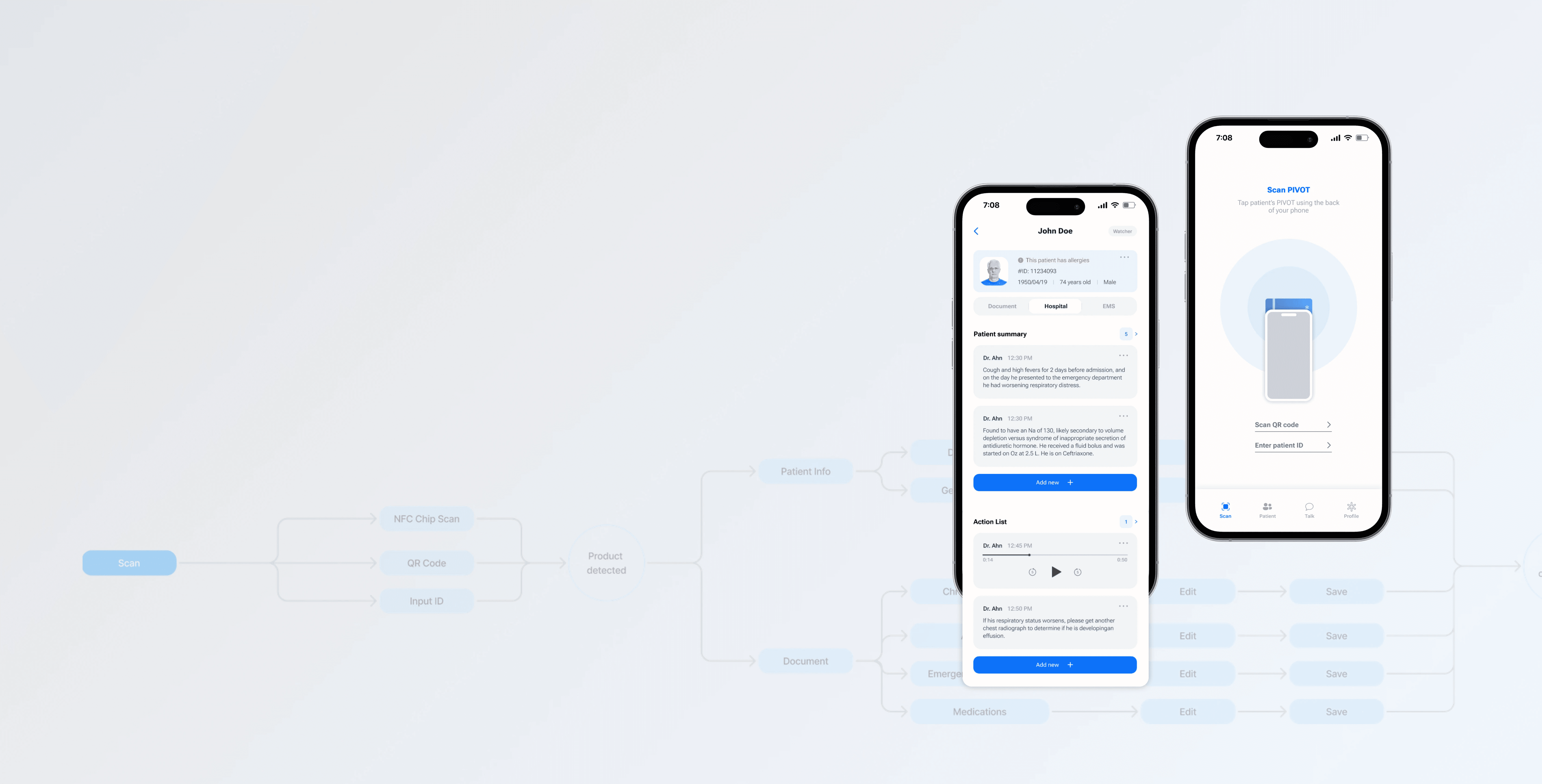

Access patient's medical information
Access patient's medical information
View patient's medical conditions, medications, allergies, emergency contacts, and notes. Effective for when patient's unconscious or isn't able to communicate
View patient's medical conditions, medications, allergies, emergency contacts, and notes. Effective for when patient's unconscious or isn't able to communicate
Access patient's medical information
View patient's medical conditions, medications, allergies, emergency contacts, and notes. Effective for when patient's unconscious or isn't able to communicate
Standardized handoff through app
Standardized handoff through app
Standardized handoff through app
View what other staffs have said about patient's status, treatment and actions. This can be in text form or voice recorded form.
View what other staffs have said about patient's status, treatment and actions. This can be in text form or voice recorded form.
View what other staffs have said about patient's status, treatment and actions. This can be in text form or voice recorded form.
